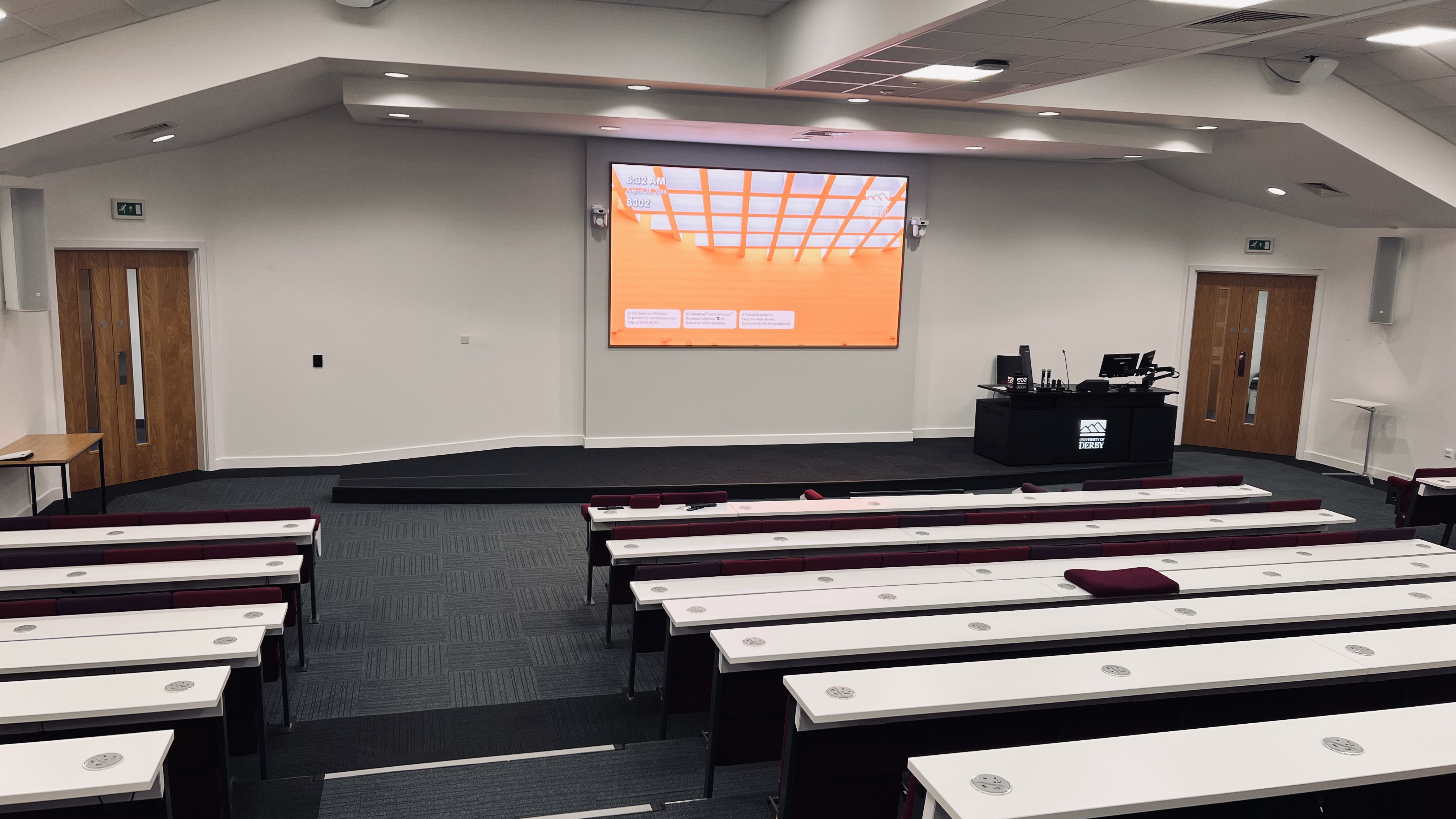

B301 lecture theatre is located in Kedleston Road on the third floor of B Block
Facilities in this Lecture theatre are:
- Lectern PC with 2 x monitors ( touch screen on the extended desktop)
- LED wall ( large display screen)
- Floor mounted confidence monitor
- USB-C Input for laptop or other device, also allows charging of device ( up to 100W)
- Cast using AirMedia Click here for more info
- Tracking camera and Hybrid cameras for lecture capture and Teams/Conference calls - select camera options from the lectern touch panel
- Visualiser
- Wireless microphones for lecture capture/Teams/Conference calls & voicelift ( 2 x handheld & 2 x Wearable Microphone) IMPORTANT: At the end of the session put microphones back in dock and make sure they click in place so that the charging light comes on
- Catchbox throwable microphone for audience participation
- Hard of Hearing MobileConnect Assistance system: Download Sennheiser Mobile Connect App to your Andriod/IOS device
- Height adjustable lectern (motorised)
Audio Visual Quick Start Instructions:
PC Button will select the lectern PC
Visualiser selects the document camera mounted on the lectern and presents a series of controls.
Cast will provide access to the AirMedia and Solstice POD if installed; instruction will appear on the monitor.
USB-C allows connection of Laptops and access to the in-room cameras and Mics for Panopto and Teams etc.
Camera Control allows selection of fixed or tracking camera.
Mic Mute Mutes all Mics (will not record into panopto)
Catch box Mute Mutes only the 'Catch Box" Mic
Display Mute Blanks main screen and any other repeater screens other than lectern monitor for privacy.
IMPORTANT: a microphone must be removed from the charging dock or no audio will be sent to Panopto. At the end of the session put microphones back in dock and make sure they click in place so that the charging light comes on.
Click here for more info on the microphones
For assistance during a class or event, call the IT Service Centre on 01332 591234
